BLV6F
Code 218058
BLV Series

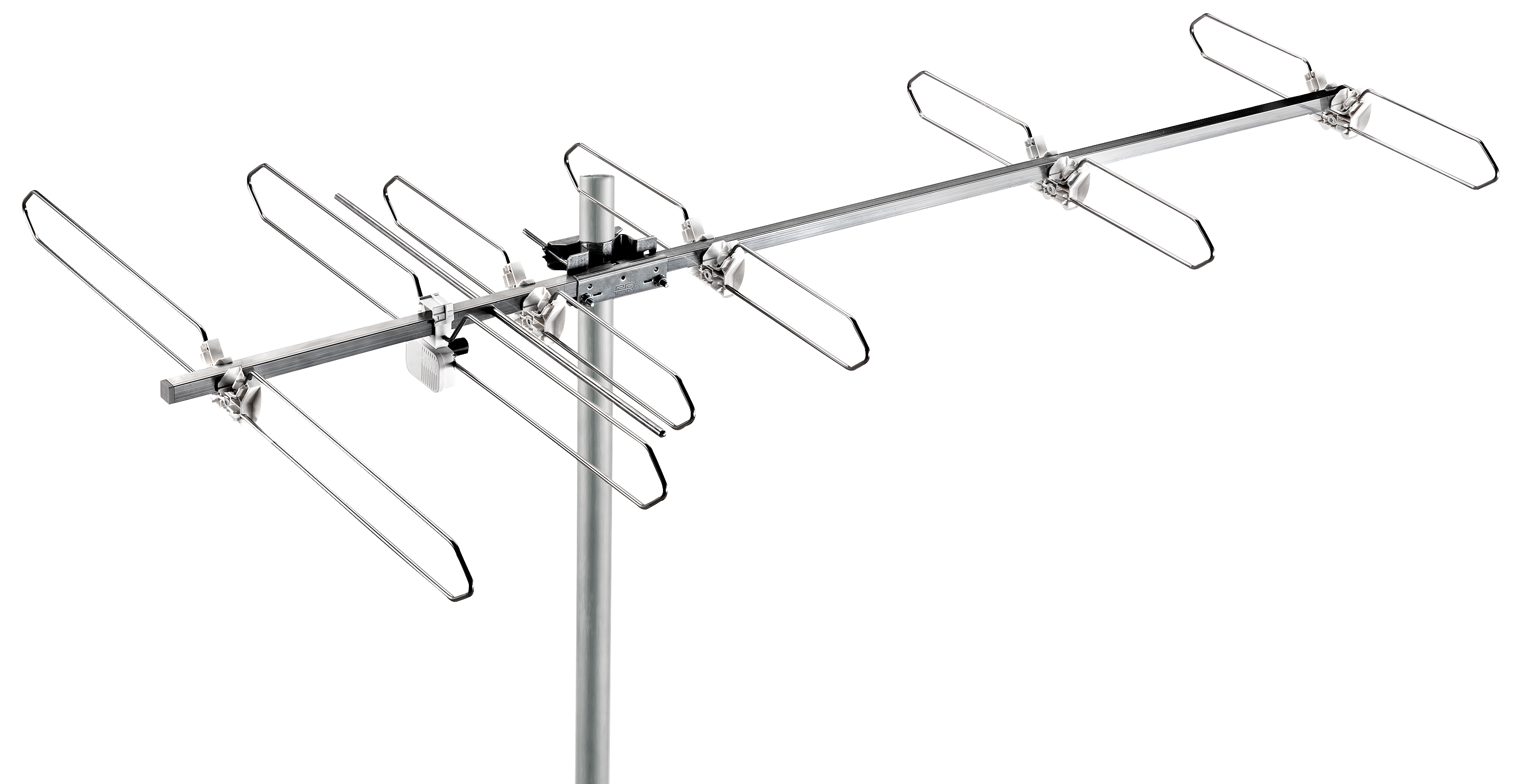

Premounted 6 elements and high quality Band III aerial complete with F connector.
Technical chars
- Zenith adjustment as standard
- High gain, excellent impedance matching and excellent directivity.
- Ensures exceptional durability of electrical and mechanical qualities
- Exclusive Fracarro design
| BLV6F | ||
| Code | 218058 | |
| Elements | 6 | |
| Band | 3 | |
| Channel | E5-E12 | |
| Bandwidth | MHz | 174-230 |
| Gain | dBi | 13 |
| Front/Back ratio | dB | 24 |
| Return loss | dB | -22 |
| Beam width (3dB) | ° | ±24 |
| Wind load 120Km/h 729N/m² | Kg (N) | 4.5 (44.1) |
| Connector | F | |
| Impedence | Ohm | 75 |
| Max mast diameter | mm | 60 |
| Dimensions | cm | 149 x 87 |
| Accessories | ||
|---|---|---|
| Horizontal polarization | Including | |
| Horizontal polarization tilt adjustment | Including | |
| Vertical polarization | PV10 (210011) | |
| Vertical polarization tilt adjustment | PV10 (210011) | |
| Auxiliary boom | N.P. | |
| Dimensions and packaging | ||
| Pieces | 3 | |
| EAN code | 8016978052400 | |
| Unit weight | Kg | 2.00 |
| Total weight | Kg | 6.7 |

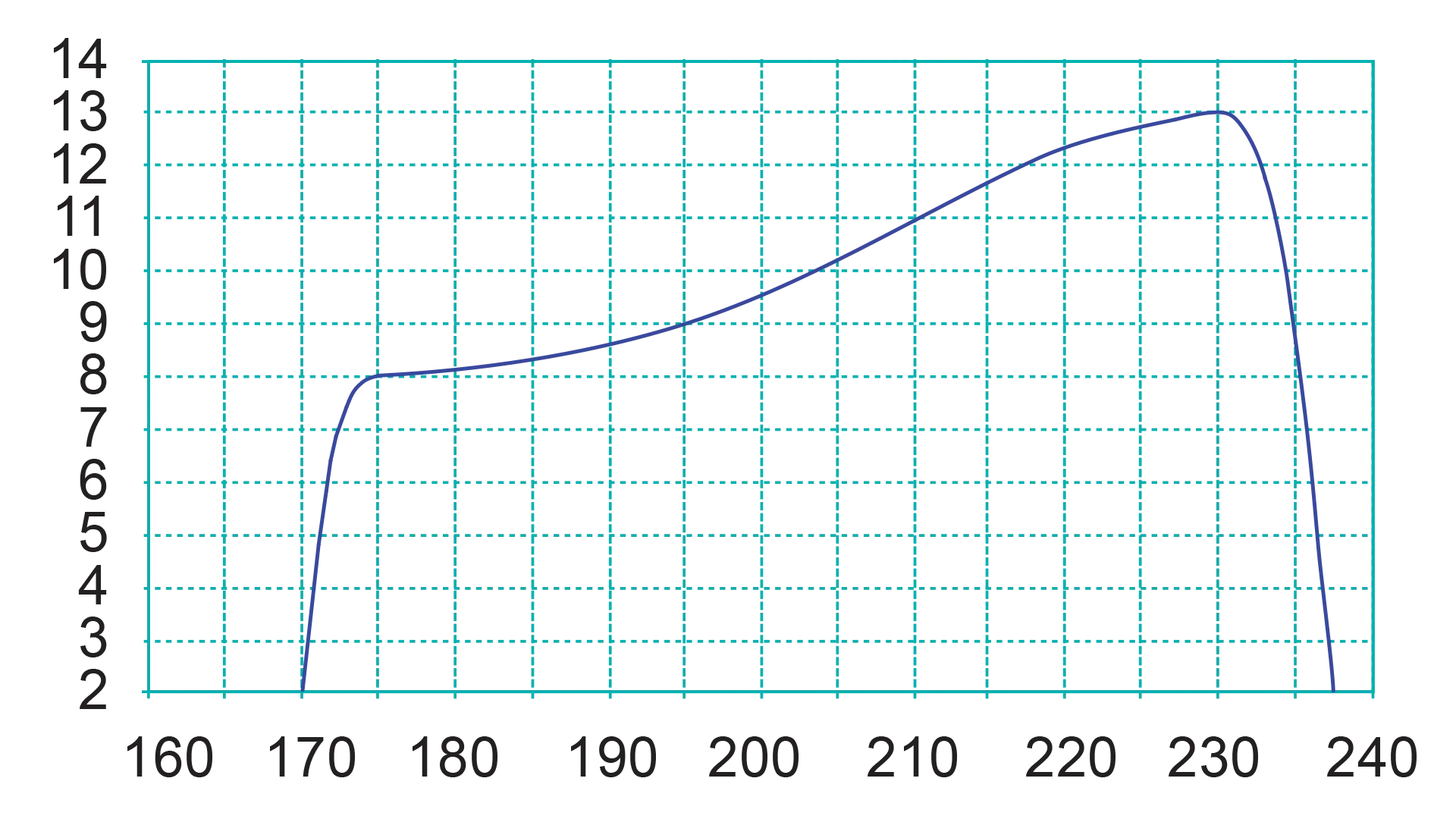

Gain (x: MHz frequency, y: ISO dBi gain) and Polar diagram (@200MHz)
