CD1-14

CD1-14

Code 220814

CAD-S Series

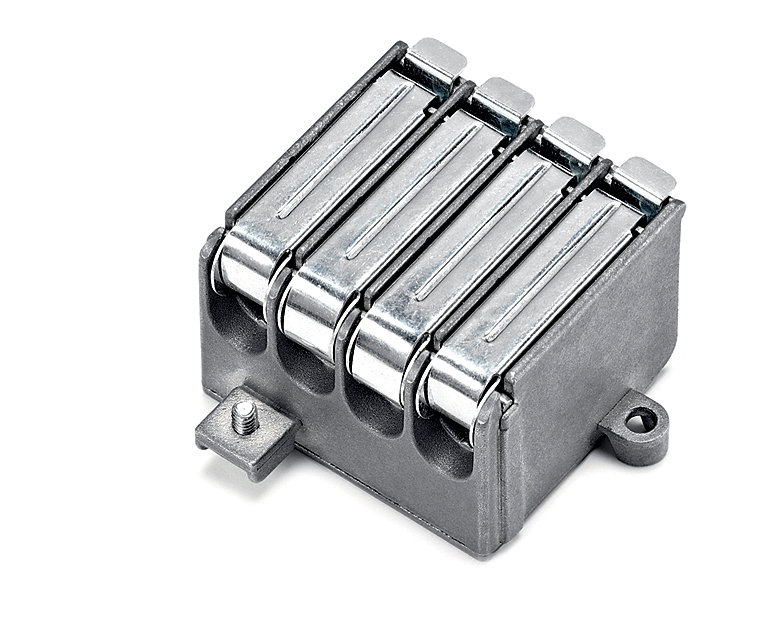

1-output clamp tap with 14dB attenuation of the CAD-S series in TV and Satellite band (5-2400MHz).

Technical chars

Perfect Class A shielding and optimal impedance matching.
CAD-S series taps are the only wideband taps with a dedicated clamp on each cable to use different diameter cables on adjacent ports.
Fracarro's patented features make them reliable and easy to install.

Insertion loss
		CD1-14
Code		220814
Taps		1
RC 5-40MHz	dB	0.8
TV 47-862MHz	dB	0.8
SAT 950-1750MHz	dB	1.3
SAT 1750-2150MHz	dB	1.5
SAT 2150-2400MHz	dB	2
Tap loss
RC 5-40MHz	dB	14.5
TV 47-862MHz	dB	14.5
SAT 950-1750MHz	dB	14.5
SAT 1750-2150MHz	dB	14.5
SAT 2150-2400MHz	dB	14
Outputs Isolation
RC 5-40MHz	dB	30
TV 47-862MHz	dB	33
SAT 950-1750MHz	dB	25
SAT 1750-2150MHz	dB	25
SAT 2150-2400MHz	dB	24
Specifications
Tap loss	dB	14
Dimensions and packaging
Pieces		12
EAN code		8016978075065
Multiple EAN		8016978075461
Packaging dimensions	mm	155 x 90 x 65
Packaging weight	Kg	1.226

Documentation

Datasheet

Manual
Serie PP CD MI IT

High resolution image

Warranty G4 classification - 4 years from date of purchase or 54 months from date of manufacture

Conformity
Declaration of Conformity available on ce.fracarro.com
