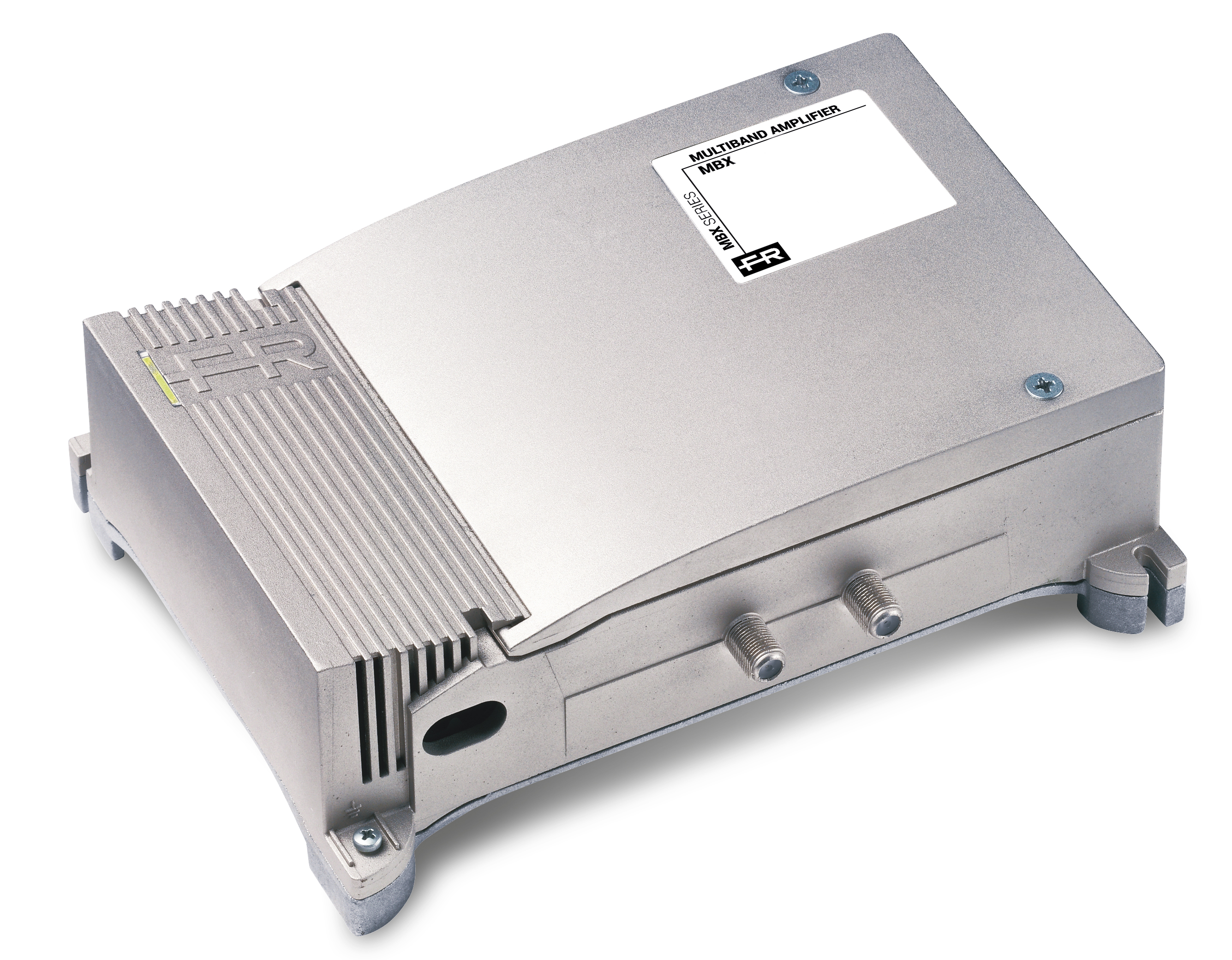

MBX5540 T2

Code 235122

4 Inputs

4-input (III+DAB, IV, V, UHF) multiband TV indoor amplifier with 31dB gain and up to 125dBμV output level on UHF band, separate amplification with independent level adjustment (20dB) for each input and low noise figure. T2 technology with UHF cut band for LTE 4G @790MHz and 5G @694MHz.

Technical chars

  • Built-in 5G filter to maximize gain and signal level in distribution compared to using an external filter.
  • High gain and high output level make it ideal for use in medium to large centralized systems.
  • High shielding against LTE interference (LTE Free) due to die-cast ZAMA chassis with F connectors and metal cover with captive screws covering the amplification section.
  • Adjustments placed inside, under the cover, to prevent tampering by third parties.
  • -30dB test socket available on all models.
  • Jumpers for inserting remote power supply on all inputs (100mA total), self-resetting short-circuit protection system and power supply status LED.
  • High-performance, low-power switching power supply.
  • Terminal for connection of TV system grounding.
MBX5540 T2
Code 235122
Input no. 4
Inputs III+DAB, IV, V, UHF
DAB, III Frequency MHz 174 - 230
Frequency IV MHz 470 - 590
V Frequency MHz 590 - 694
Frequency MHz 470 - 694
Gain dB III+DAB: 33; IV: 31; V: 31; UHF: 31
Gain adjustment dB III+DAB: 20; IV: 20; V: 20; UHF: 20
Optical noise figure dB FM: 4.5; III+DAB: 4.5; UHF: 7.5
Outputs number 1
Output level dBµV III+DAB: 122; UHF: 125
Connectors F female
Filter 5G
Power supply voltage Vdc/A 220-230 / 50-60
Current consumption W 8.5
Isolation class II
Remote feeding 100mA@12V total
Output test dB -30
Impedence Ohm 75
Operating temperature °C -10 to +55
Protection IP20
Dimensions and packaging
Pieces 1
EAN code 8016978104888
Packaging dimensions mm 240 x 185 x 60
Product dimensions mm 194 x 143 x 64
Packaging weight Kg 1.8
Net Weight Kg 2.1
Weight Kg 2.2
