OPT-TX 1510
Code 270667
Transmitters

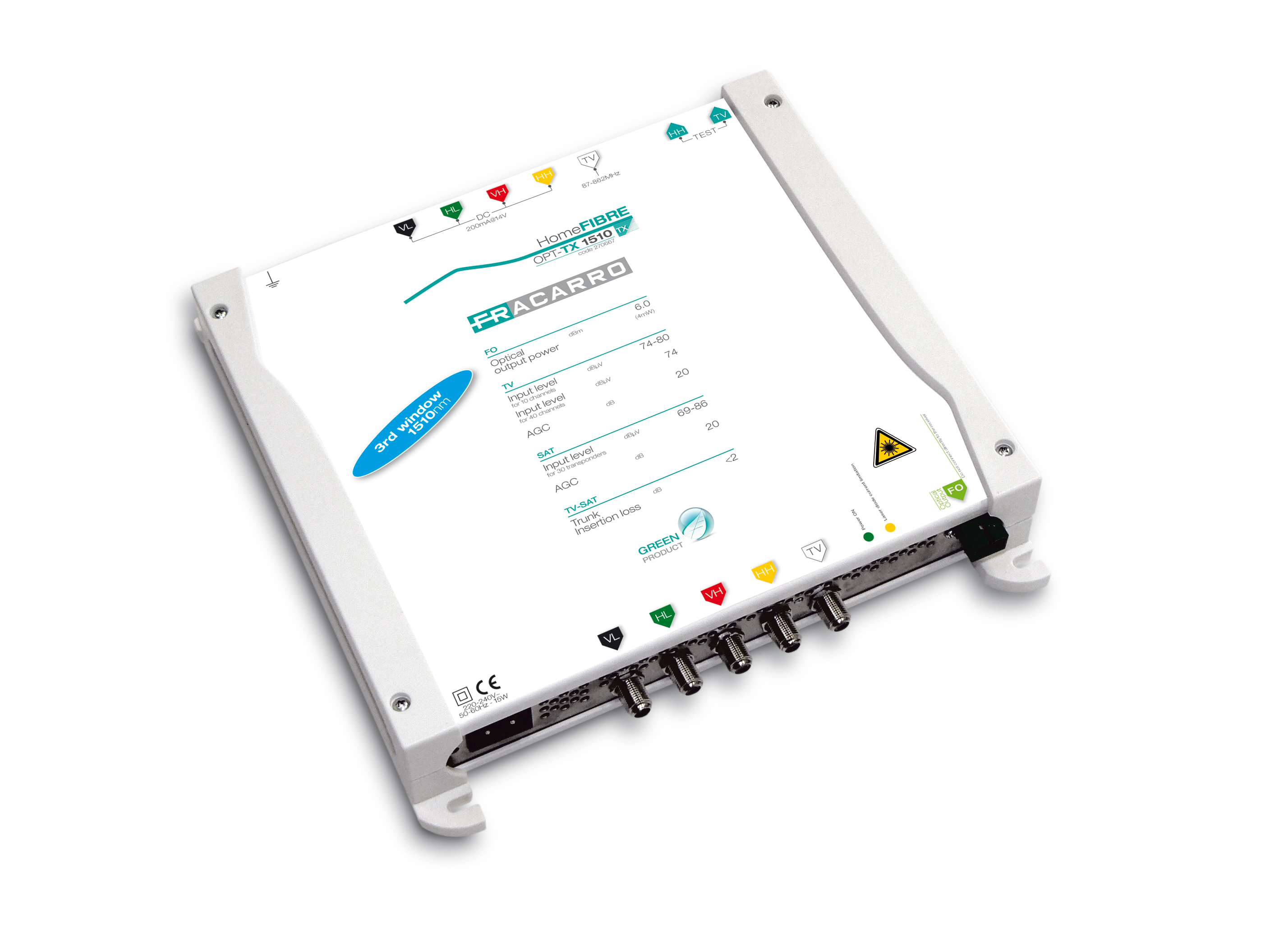

Innovative solution that allows you to transmit the entire TV band, including radio signals, and an entire orbital position on a single fibre. Optical transmitter suitable for CWDM (Coarse Wavelength Division Multiplexing) technology for the distribution of up to 4 orbital positions on a single fibre. Wavelength 1510nm, DFB at 7dBm (dimensions 230x230x50mm)
Technical chars
- Traditional Dish Installation
- Transmitter equipped with AGC allowing the use of dishes of different diameters
- Cascade solution typical of MSW systems
- Up to 21dB optical attenuation
- Easy and intuitive installation
- Full terrestrial band transmission
| OPT-TX 1510 | ||
| Code | 270667 | |
| Input RF | 5 (4 SAT + 1 TV) | |
| Optical Output | 1 x SC/APC | |
| SAT inputs | ||
|---|---|---|
| Bandwidth | MHz | 950-2150 |
| SAT Connectors | F Female | |
| Output level SAT | dBµV | 69-86 |
| Return loss | dB | 10 |
| SAT Trunk line loss | dB | <2 |
| Input TV | ||
| Connectors | F Female | |
| Input level | dBµV | 80 @10 ch. |
| Frequency band | MHz | 87-862 |
| Return loss | dB | 10 |
| Through line loss | dB | 1 |
| RF output | ||
| Outputs | 7 (4 SAT + 1 TV + 2 TEST) | |
| TEST output | ||
| Connectors | F Female | |
| Frequency band | MHz | 87-862 / 950-2150 |
| Attenuation connectors | dB | 59 each channel |
| Return loss | dB | 10 |
| Optical output | ||
| Wavelength | nm | 1510 |
| Optical power | dBm | 8 (±1) |
| Optical return loss | dB | >45 |
| Safety class | 1M | |
| Specifications | ||
| Power supply voltage | Vdc/A | 184-264 / 50–60 |
| Current consumption | W | 15 |
| LED | Green LED: TX on; Red LED: laser current too high |
|
| Operating temperature | °C | -5 to +55 |
| Conformity | CEI EN 50083-2 EN60065 | |
| Dimensions and packaging | ||
| Pieces | 1 | |
| EAN code | 8016978096480 | |
| Packaging dimensions | mm | 400 x 300 x 70 |
| Product dimensions | mm | 230 x 230 x 50 |
| Packaging weight | Kg | 2.385 |
