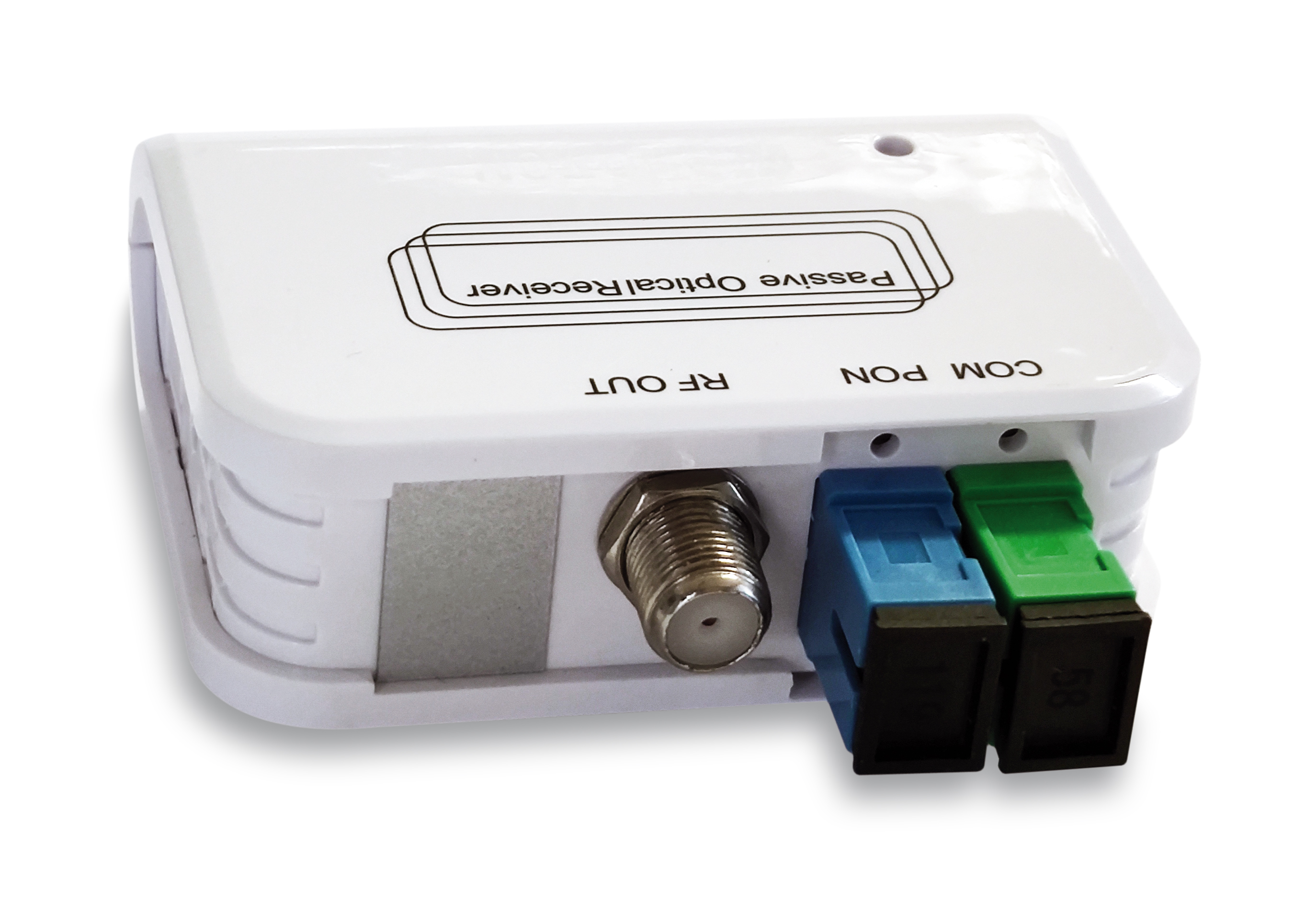

GPON RX PASS TV
Code 287556
ONT-ONU receivers
Passive Optical Network Terminal for digital TV signal distribution using the PON network.
The receiver is equipped with an integrated WDM diplexer to separate the TV band from the data.
Technical chars
Passive ONT with 1 x CATV output and integrated WDM diplexer
| GPON RX PASS TV | ||
| Code | 287556 | |
| Optical output | ||
|---|---|---|
| Connector type | SC/APC single-mode (input 1550/1490/1310) SC/PC single-mode (demix 1490/1310 output for ONT) | |
| Wavelength | nm | - |
| PON max. distance | Mbps | - |
| PON Section | ||
| Optical sensitivity | - | |
| PON max. distance | Mbps | - |
| Optical saturation | dBm | - |
| Ethernet Section | ||
| LAN ports | - |
|
| Wifi Section | ||
| Working mode | - | |
| Standard compatibility | - | |
| Bitrate | - | |
| 2.4GHz frequency range | GHz | - |
| Encryption | - | |
| CATV Section | ||
| Connector | F female | |
| Optical input level | dB | -9 to ±2 |
| Output level | dBµV | 60 (±2) (@ 0dBm) |
| RF frequency range | MHz | 14 - 1000 |
| Wavelength input | nm | 1550 (±10) |
| Optical return loss | dB | 55 |
| Impedence | ohm | 75 |
| POTS Section | ||
| Connector type | - | |
| Standard | - | |
| Management | ||
| Option mode | - |
|
| Specifications | ||
| Power supply voltage | Vdc/A | - |
| Power supply voltage | V/A | - |
| Current consumption | W | - |
| Operating temperature | °C | -20 to +50 |
| Storage temperature | °C | -40 to +85 |
| Relative humidity | % | from 5 to 95 (without condensation) |
| Dimensions and packaging | ||
| Packing | Single | |
| Pieces | 1 | |
| EAN code | 8016978103942 | |
| Packaging dimensions | mm | 190 x 130 x 60 |
| Product dimensions | mm | 75 x 55 x 28 |
| Packaging weight | Kg | 0.15 |
| Weight | Kg | 0.75 |
