GX-BOX-DP-SFP

Code 287817

Chassis Galaxia

GALAXIA is Fracarro's modular, high-density solution ideal for professional applications. The solution is IP native and can meet all requirements related to audio and video content distribution.

The GALAXIA control unit is equipped with 6 slots where various types of modules can be installed and mixed, e.g., encoders (e.g., HDMI multi-input card), DVB-C, DVB-S2X/S2 or DVB-T2/T receivers, and DVB-T or DVB-C multi-modulator cards. The GALAXIA digital platform is a comprehensive solution suitable for all major video transmission needs of signal reception, decoding, encoding, multiplexing, coaxial modulation and IPTV (unicast and multicast SPTS/MPTS).

The GALAXIA solution is the perfect and suitable choice for the hospitality sector(hotels, villages, campgrounds, resorts) educational (schools, university campuses), health care (hospitals, nursing homes), prisons, ships, institutional buildings and generally all multi-user facilities.

The GALAXIA central unit also is the suitable solution for managing IPTV content and distributing it over the IP network via FRACARRO GPON solutions.

Technical chars

Mechanical 1RU Standard Rack 19"
Dual power supply as standard (high redundancy)
Forced ventilation

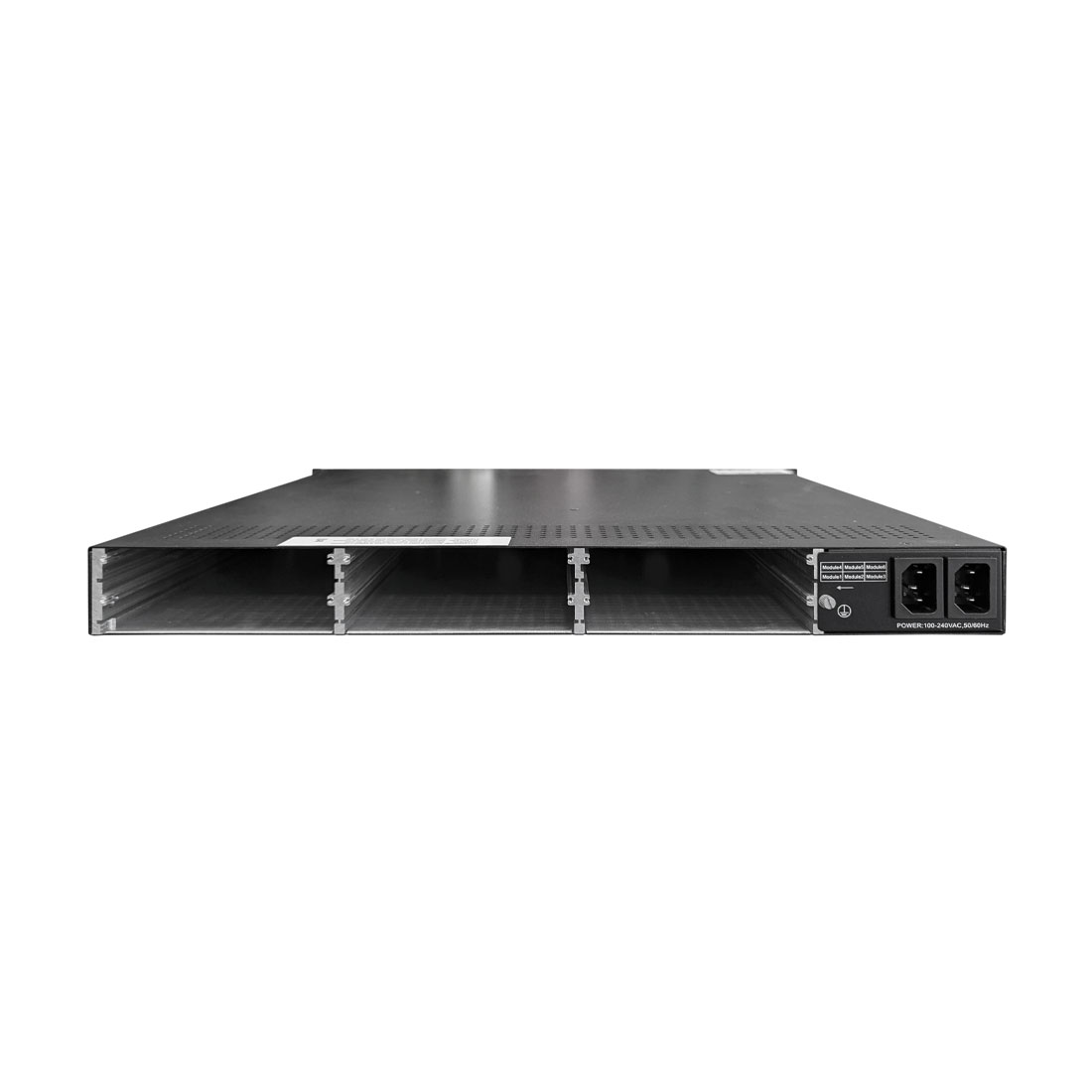

6 available slots on rear panel arranged to insert "hot" modules

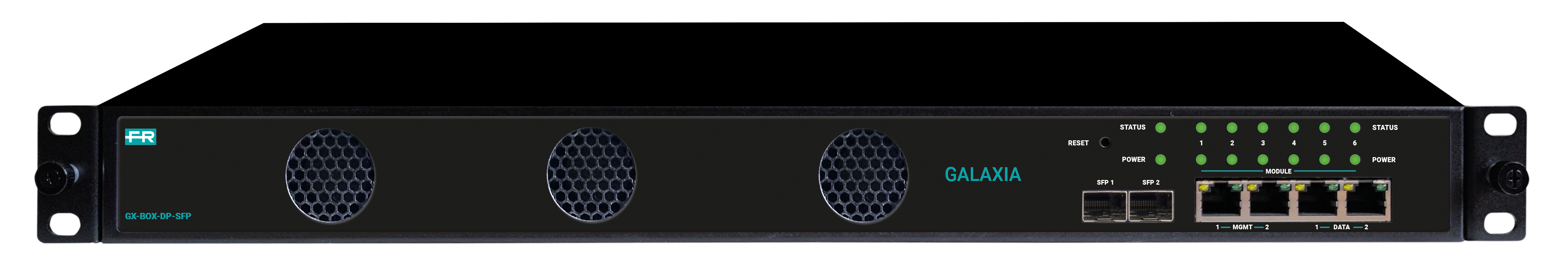

4 GE RJ45 ports on front panel(2 RJ45 ports for management and 2 RJ45 ports for IPin/IPout streaming)
Supports up to 120 input IPTV streams and 120 output IPTV streams (SPTS/MPTS)
Variousmodules available to manage and distribute different input sources (e.g., DVB-S2/S2X, DVB-T2, DVB-C, HDMI, program decoding, etc.)
On-board WEB interface: programming of all parameters is done via HTML web interface
Advanced configuration: via the web interface all parameters of each mux (ONID, TSID, NetID,...) and each program within the individual MUX (LCN, SID, PID, Program Name, etc.) can be programmed.
Supports SNMP and HTTP protocols

Specifications
		GX-BOX-DP-SFP
Code		287817
Current consumption	W	400
Operating temperature	°C	-10 to +50; -10 to +45 (with CAM)
Dimensions and packaging
Pieces		1
EAN code		8016978109708
Product dimensions	mm	480 x 440 x 44.45

Documentation

Datasheet

High resolution image

Warranty Q2 classification - 2 years from date of purchase or 30 months from date of manufacture

Conformity
Declaration of Conformity available on ce.fracarro.com
