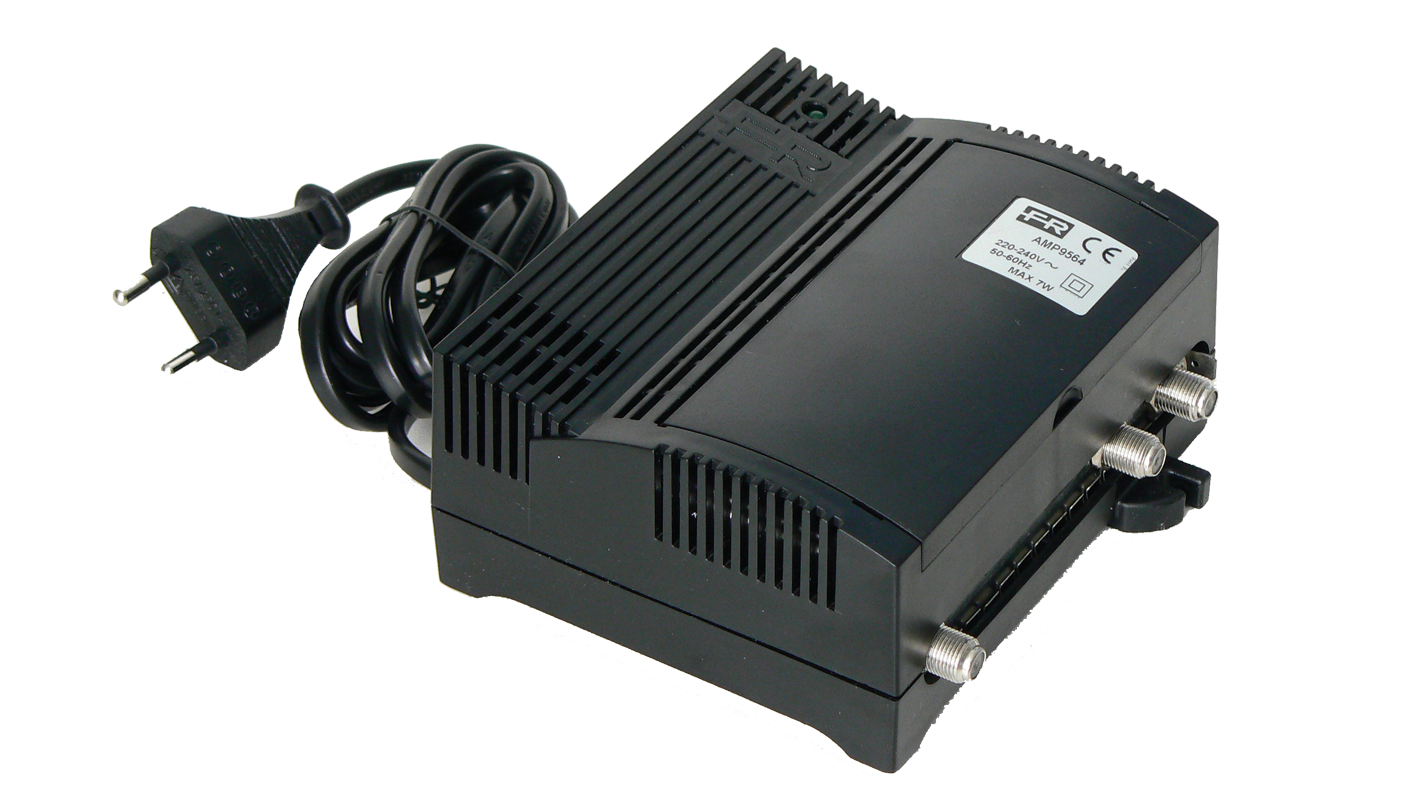

AMP9564
Code 223371
TV-SAT
2-input (RC+FM+VHF+UHF, SAT) indoor amplifier with 37-43dB uptilted gain and up to 120dBμV output level on SAT band, gain adjustment (15dB) and low noise figure.
Technical chars
- Its high gain and high output level make it ideal for use in medium to large centralised systems.
- Equipped with a fully shielded metal chassis with F connectors.
- Adjusters located inside, under the cover, to prevent tampering by third parties.
- Switching power supply with high efficiency and low consumption.
- Clamp for connection of TV system earth.
| AMP9564 | ||
| Code | 223371 | |
| Input no. | 2 | |
| Inputs | RC + FM + VHF + UHF, SAT | |
| Frequency FM | MHz | 88 - 108 |
| VHF Frequency | MHz | 47 - 230 |
| Frequency | MHz | 470 - 790 |
| Frequency | MHz | 950 - 2150 |
| Gain | dB | TV: -2; SAT: 37-43 (sloped) |
| Gain adjustment | dB | TV: - ; SAT: 15 |
| Optical noise figure | dB | TV: - ; SAT: 7 |
| Outputs number | 1 | |
| Output level | dBµV | TV: - ; SAT: 120 |
| Connectors | F female | |
| Specifications | ||
|---|---|---|
| Power supply voltage | Vdc/A | 220-230 / 50-60 |
| Current consumption | W | 9 |
| Isolation class | II | |
| Remote feeding | 14/18Vdc (max 250mA), 0-22KHz | |
| Impedence | Ohm | 75 |
| Operating temperature | °C | -10 to +55 |
| Protection | IP20 | |
| TV-SAT Isolation | dB | >18 |
| Conformity | EN60065: 2004-06, EN50083-2: 2006-05 | |
| Dimensions and packaging | ||
| Pieces | 1 | |
| EAN code | 8016978085989 | |
| Packaging dimensions | mm | 143 x 70 x 131 |
| Product dimensions | mm | 145 x 70 x 130 |
| Packaging weight | Kg | 0.5 |
| Net Weight | Kg | 2.1 |
| Weight | Kg | 2.2 |
