OPT-TX 1550
Code 270669
Transmitters

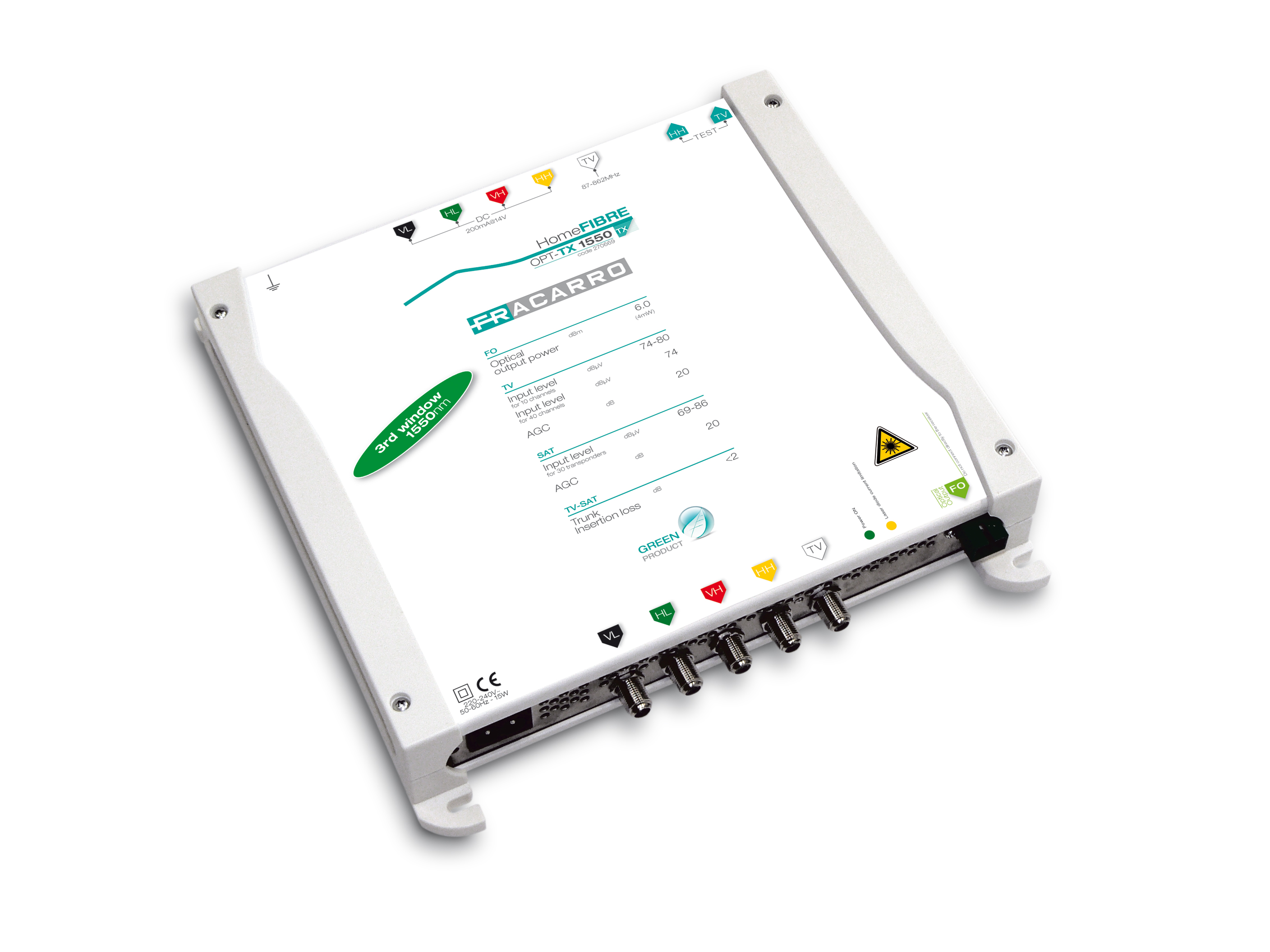

Fracarro's innovative Home Fiber solution is designed to provide easy installation from the headend to the wall outlet. The system uses a conventional LNB and parabolic dish system that require no special tools for optical pointing. The Home Fiber system is capable of carrying all satellite and digital terrestrial signals through a single 9/125 glass fiber. Any cascaded OPT-TX optical transmitters can be connected using RF looptrought for greater flexibility in system design. Innovative solution to transmit the entire TV band, including radio signals, and an entire orbital position over a single fiber. Optical transmitter suitable for CWDM (Coarse Wavelength Division Multiplexing) technology for distrbution of up to 4 orbital positions on a single fiber. Wavelength 1550nm, DFB at 7dBm (dimensions 230x230x50mm)
Technical chars
- Traditional Dish Installation
- Transmitter equipped with AGC allowing the use of dishes of different diameters
- Cascade solution typical of MSW systems
- Up to 21dB optical attenuation
- Easy and intuitive installation
- Full terrestrial band transmission
| OPT-TX 1550 | ||
| Code | 270669 | |
| Input RF | 5 (4 SAT + 1 TV) | |
| Optical Output | 1 x SC/APC | |
| SAT inputs | ||
|---|---|---|
| Bandwidth | MHz | 950-2150 |
| SAT Connectors | F Female | |
| Output level SAT | dBµV | 69-86 |
| Return loss | dB | 10 |
| SAT Trunk line loss | dB | <2 |
| Input TV | ||
| Connectors | F Female | |
| Input level | dBµV | 80 @10 ch. |
| Frequency band | MHz | 87-862 |
| Return loss | dB | 10 |
| Through line loss | dB | 1 |
| RF output | ||
| Outputs | 7 (4 SAT + 1 TV + 2 TEST) | |
| TEST output | ||
| Connectors | F Female | |
| Frequency band | MHz | 87-862 / 950-2150 |
| Attenuation connectors | dB | 59 each channel |
| Return loss | dB | 10 |
| Optical output | ||
| Wavelength | nm | 1550 |
| Optical power | dBm | 8 (±1) |
| Optical return loss | dB | >45 |
| Safety class | 1M | |
| Specifications | ||
| Power supply voltage | Vdc/A | 184-264 / 50–60 |
| Current consumption | W | 15 |
| LED | Green LED: TX on; Red LED: laser current too high |
|
| Operating temperature | °C | -5 to +55 |
| Conformity | CEI EN 50083-2 EN60065 | |
| Dimensions and packaging | ||
| Pieces | 1 | |
| EAN code | 8016978096503 | |
| Packaging dimensions | mm | 400 x 300 x 70 |
| Product dimensions | mm | 230 x 230 x 50 |
| Packaging weight | Kg | 2.385 |
