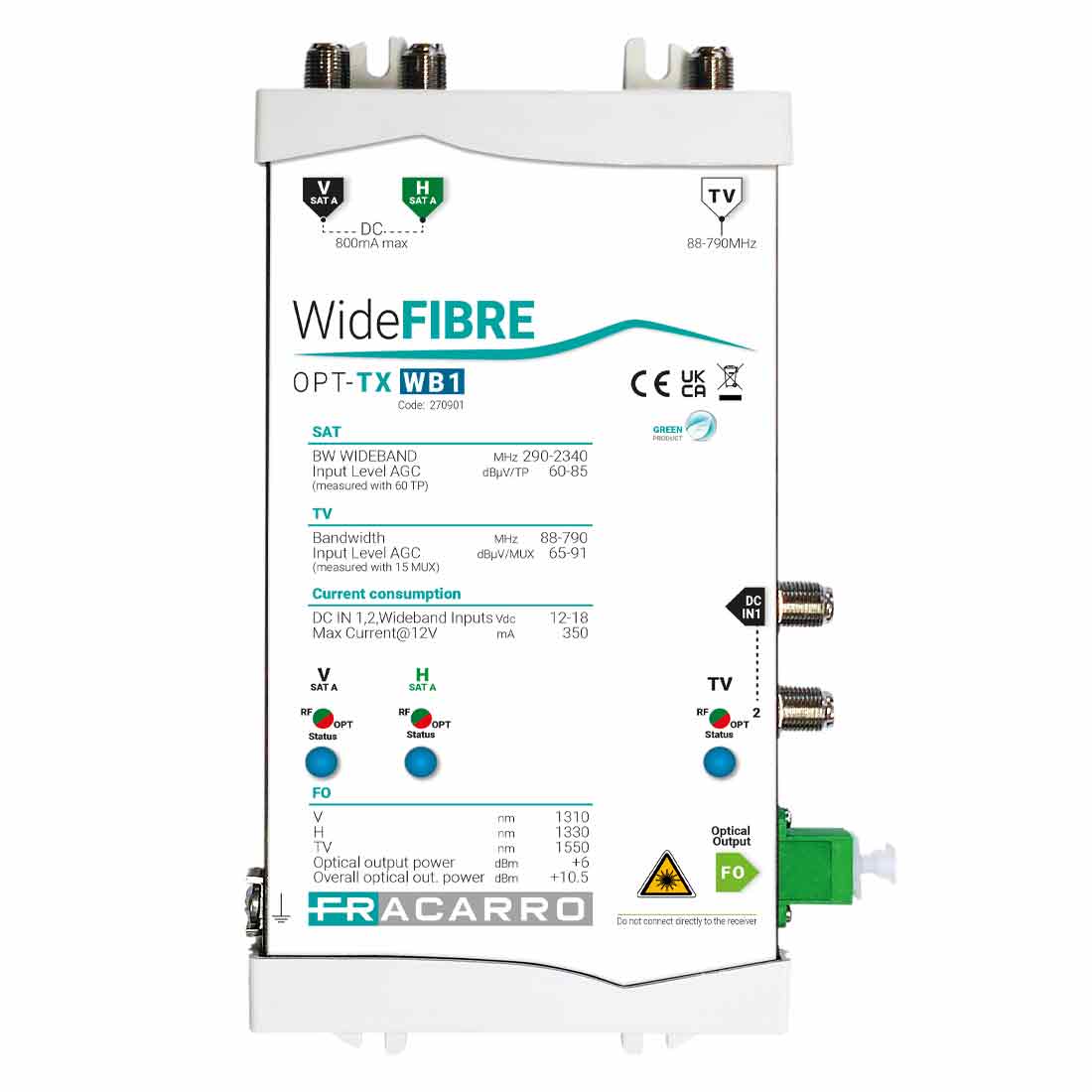

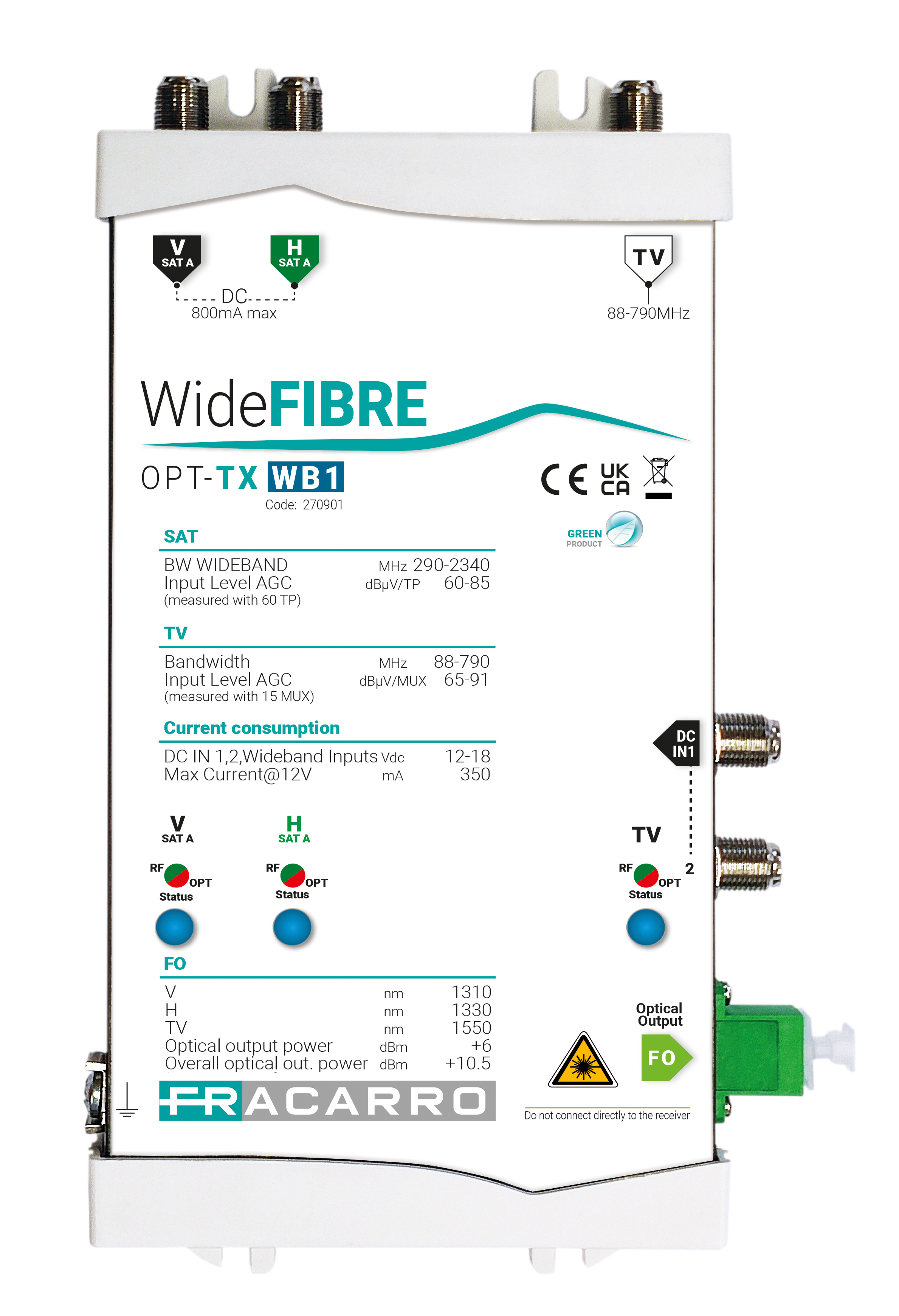

OPT-TX WB1

Code 270901

Transmitters

The innovative Fracarro Wide Fibre solution has been designed to ensure easy installation from the head to the wall socket. The transmitter is able to manage the RF signals coming from a parabolic system equipped with a wideband LNB (V, H) and a digital terrestrial antenna. The Wide Fiber solution allows you to carry the entire TV band, including FM and DAB radio signals, and an entire orbital position on a single 9 / 125nm single-mode fiber. The wideband optical transmitter is equipped with three distinct lasers capable able to indipendently manage the 2 wideband polarities (V, H) and the TV signal; furthermore it uses CWDM (Coarse Wavelenght Division Multiplexing) technology to mix the different wavelengths and transmit them on a single single-mode optical fiber. (dimensions 114x200x31mm)

Technical chars

Compact dimensions
Double DC-in connector for power supply redundancy
Transmitter that can also be powered from the V and H inputs
No adjustment: AGC on all inputs
Dedicated optical laser for wideband polarity and for the TV signal
Dedicated light indications for a quick diagnosis of all the main functions
PSU included

SAT inputs
		OPT-TX WB1
Code		270901
Input RF		3 (2 SAT + 1 TV)
Optical Output		1 SC/APC
Bandwidth	MHz	290-2340
SAT Connectors		F Female
Output level SAT	dBµV	60-85 @TP
Return loss	dB	6
Input TV
Connectors		F Female
Input level	dBµV	63-90 @MUX
Frequency band	MHz	88-790
Return loss	dB	6
Optical output
Wavelength	nm	1310 (V), 1330 (H), 1550 (TV)
Optical power	dBm	6 (±1)
Optical return loss	dB	>30
Safety class		1M
Features
Power supply voltage	V	12-18
Current consumption	mA	350@12V
Current consumption	W	>5
LED		Green led fixed ON: Input RF signal in the correct operating range Green led slowly blinking: Input RF signal too low Green fast blinking: Input RF signal too high Red led fixed ON: Possible failure of the corresponding laser
Working temperature	°C	From -10 to +55
Storage temperature	°C	From -40 to +70
Conformity		CEI EN 50083-2 EN60065
Dimensions and packaging
Pcs		1
EAN code		8016978106516
Packaging dimensions	mm	186x240x58
Product dimensions	mm	114x200x31
Packaging weight	Kg	0.625

Documentation

Datasheet

Warranty S4 classification - 4 years from date of purchase or 54 months from date of manufacture

Conformity
Declaration of Conformity available on ce.fracarro.com
