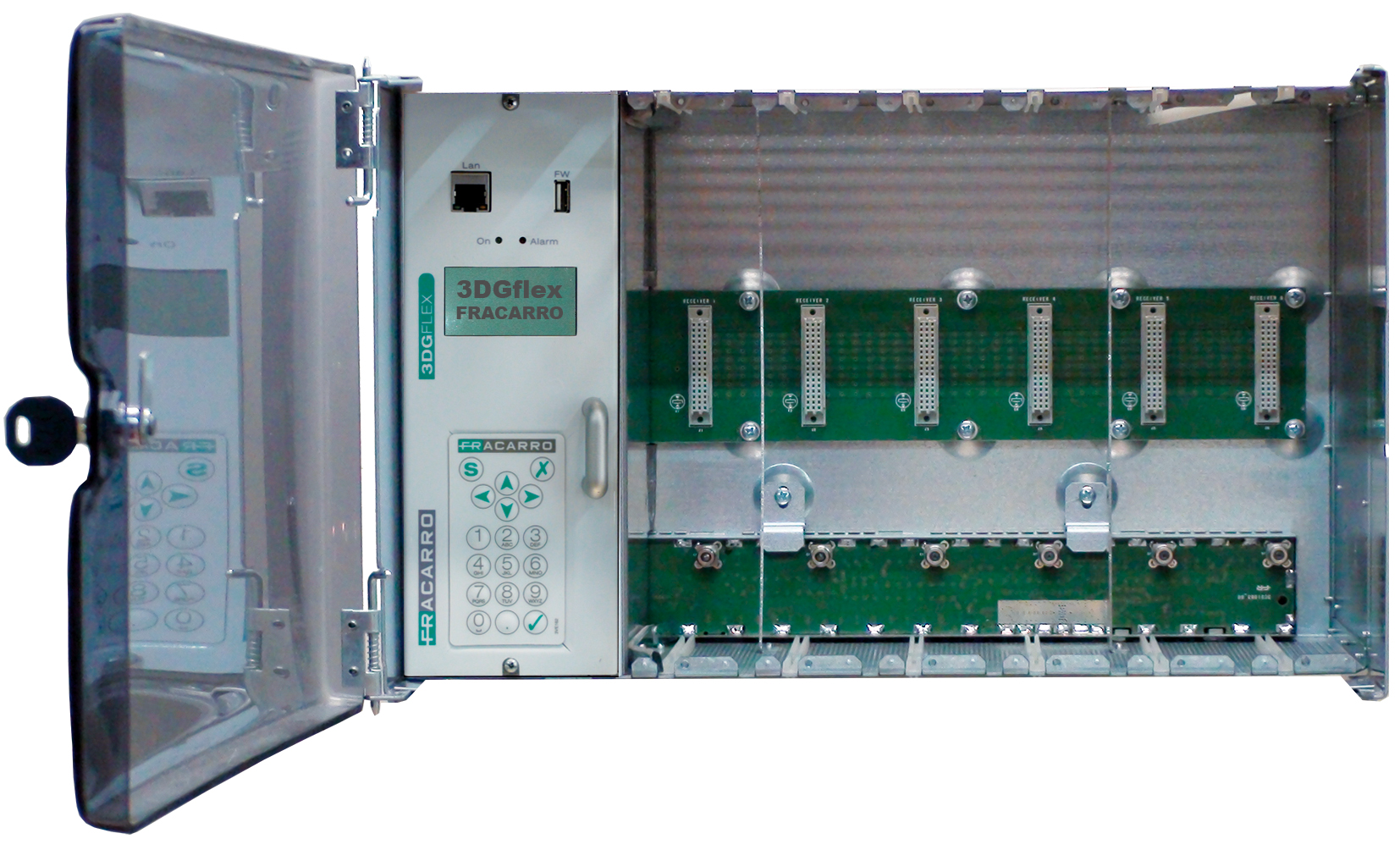

3DG-BOX
Code 283156
BOX
3DGFLEX series, Box with bult in control unit
Technical chars
- Keypad and front display for programming
- Accessories and brackets included: brackets can be used to fix the box to a wall, floor, ceiling or to install it in a standard 19" rack Plexiglass front panel is included
- Built-in host controller: to power, program and monitor the control panel at any time from any PC.
- Programming fromWEB interface and basic programming from on-board keypad and display
- USB port for upload/download of existing configurations and for module firmware upgrade
| 3DG-BOX | ||
| Code | 283156 | |
| Specifications | ||
|---|---|---|
| Connectors | F female (RF), RJ45 (programmable via web interface), USB (fw upgrade) | |
| Current consumption | W | 105 (no CAM) |
| Operating temperature | °C | -10 to +50; -10 to +45 (with CAM) |
| Conformity | EN50083-2, EN60065 | |
| Dimensions and packaging | ||
| Pieces | 1 | |
| EAN code | 8016978090396 | |
| Packaging dimensions | mm | 520 x 354 x 320 |
| Product dimensions | mm | 415 x 260 x 265 |
| Packaging weight | Kg | 10.25 |
