DE418M
Code 287470
PAM - DEM Series

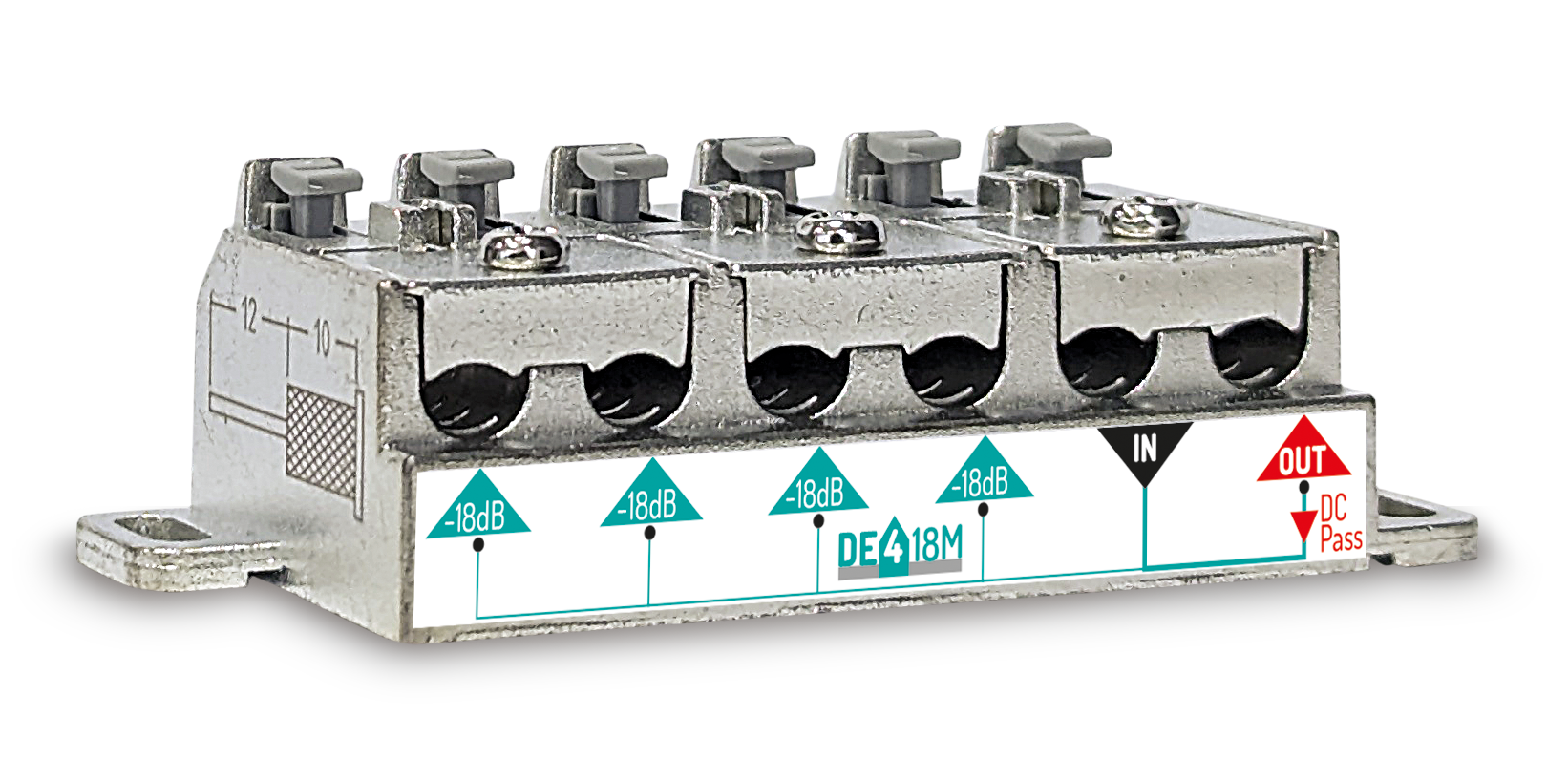

4-output clamp tap with 18dB attenuation of the DEM series in the TV and Satellite band (5-2400MHz).
Technical chars
- Thanks to theunique retaining clip, the center connector remains integral with the rest of the mechanics, facilitating cable attachment.
- The very small size and clamp solution, without an F connector, greatly reduce the installation footprint.
- Excellent shielding ensures signal protection from 5G and 4G LTE disturbances in the air.
- New mechanics with protective fins (Rev. 1) prevent the center connector clip from being accidentally pressed while closing the junction boxes.
- Separate input and output ports so that different diameter cables can be used between the down conductor and the branch outlets.
- DC pass-through from the outputs to the input throughout the series; DC blocking in the branch outputs of DE models.
| DE418M | ||
| Code | 287470 | |
| Taps | 4 | |
| Insertion loss | ||
|---|---|---|
| RC 5-40MHz | dB | 2 |
| TV 47-862MHz | dB | 2.2 |
| SAT 950-1750MHz | dB | 3 |
| SAT 1750-2150MHz | dB | 3.2 |
| SAT 2150-2400MHz | dB | 3.5 |
| Tap loss | ||
| RC 5-40MHz | dB | 18 |
| TV 47-862MHz | dB | 18 |
| SAT 950-1750MHz | dB | 18.5 |
| SAT 1750-2150MHz | dB | 19 |
| SAT 2150-2400MHz | dB | 19.5 |
| Outputs Isolation | ||
| RC 5-40MHz | dB | 20 |
| TV 47-862MHz | dB | 20 |
| SAT 950-1750MHz | dB | 20 |
| SAT 1750-2150MHz | dB | 20 |
| SAT 2150-2400MHz | dB | 20 |
| Specifications | ||
| Tap loss | dB | 18 |
| Dimensions and packaging | ||
| Pieces | 10 | |
| EAN code | 8016978101320 | |
| Multiple EAN | 8016978101368 | |
| Packaging dimensions | mm | 130 x 75 x 90 |
| Product dimensions | mm | 82 x 33 x 23 |
| Packaging weight | Kg | 0.97 |
