Code 287568

Fiber optic tools

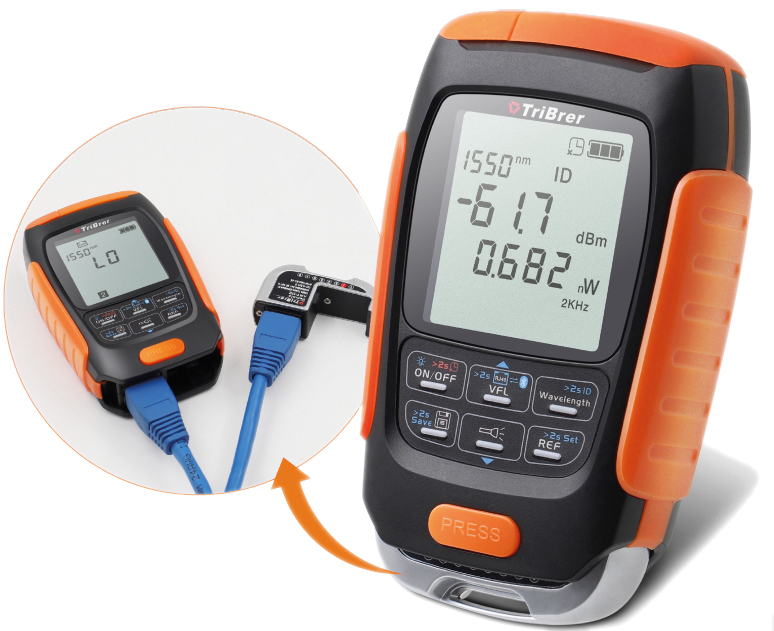

Portable multifunctional optical power meter with Visual with Fault Locator and testing functionality for RJ45 cables

Technical chars

  • Storage capacity: up to 500 traces
  • Visual Fault Locator included
  • Optical measurement range: 700 to 1700nm
  • LED lighting for use in dark environments
  • Charging via Micro USB port
  • Preset to 850/1300/1310/1490/1550 / 1625nm
  • Optical range: -50 at + 26dBm
  • Resolution: 0.01dB
  • Protective shell against accidental drops
Code 287568
Optical input 2.5mm UPP universal
Wavelength nm 850/1300/1310/1490/1550/1625
Optical return loss dB >60
Optical input power dBm

1310/1490/1550/1625: +26 to -50dBm

Accuracy 0.2
Light source -
Battery V/Ah Lithium Integrated
Power supply voltage Vac/Hz Ricarica mediante porta Micro USB
Working temperature °C From -10 to +50 , < 90% relative humidity
Storage temperature °C From-20 to +60
Dimensions and packaging
Pcs 1
EAN code 8016978104352
Packaging dimensions mm 105x90x30
Product dimensions mm 59x98x27
Packaging weight Kg 0.15
Net Weight Kg 0.1
